Glass silk screen version of the production and use of

    Silk screen glass industry often use to things, silk screen printing is used on the glass with a pattern, silk screen printing glass with good or bad the quality of a great relationship, then the production of silk screen glass with the use of that kind of how it?

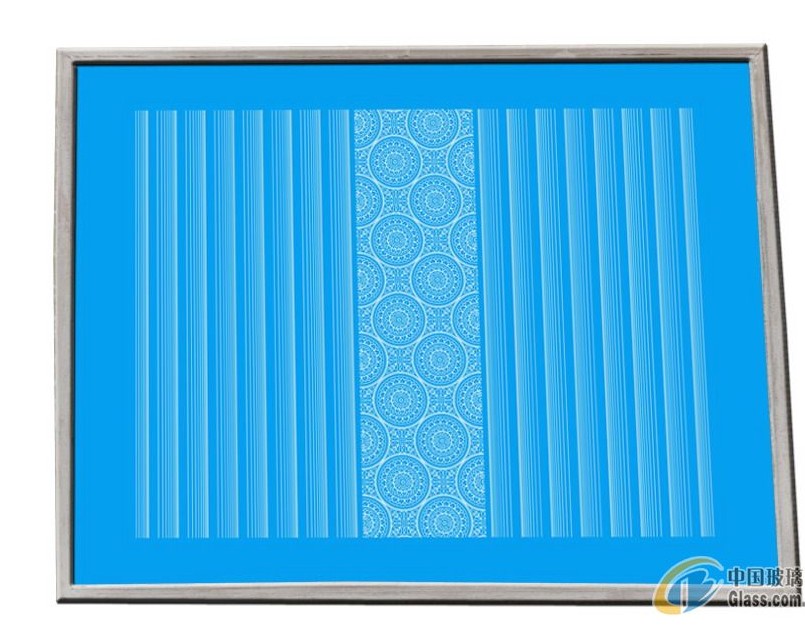

1 network frame type.

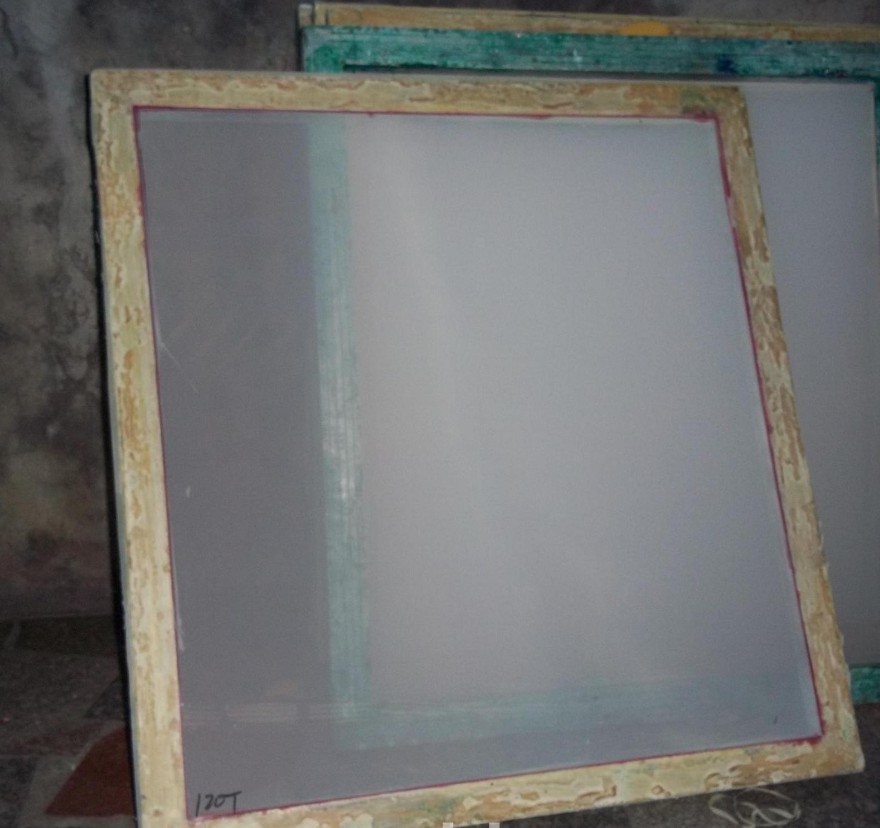

   Silk screen will have a frame, frame with wooden material with aluminum material, wooden material is of poorer quality, generally used for one-time or temporary use. The quality of natural aluminum frame is much better, and the price is also expensive.

2 dragnet.

   Before netting network box must be cleaned, and the level of validation for network box, this is done in order to detect whether there is deformed network box, and then coated with a layer of glue on the network box, and then put the system on the platform in the netting machines select gauze mesh dragnet.

3 on the photoresist.

   Prior to the drying nets gauze coated with a layer of photoresist, photoresist using the sizing device can very uniform coating, the photoresist can not brightly lit place, otherwise an exposure of photoresist can not afford to wash. After photoresist coated finish drying the screen.

4 drying nets.

   Nets need to use a fresh coat finish mesh with photoresist film, the film attached to the bottom of the screen, and then placed on the exposure exposure machine, pay attention to not put anti-film, the exposure time in a minute or so, the time to rinse with water immediately after out of the unexposed part.

5 screen use.

   Halftone screen before printing machines need to be fixed, and then put the glass with the pattern on the screen for a good bit, and then put a good bit of glass screen printing can be carried out.
